Setup Connection

This is where you provide your database credentials so Anansi can connect to it.

1. Choose Your Database Type & Enter Connection Details

Pick your database type from the tabs below to view connection parameters and screenshots:

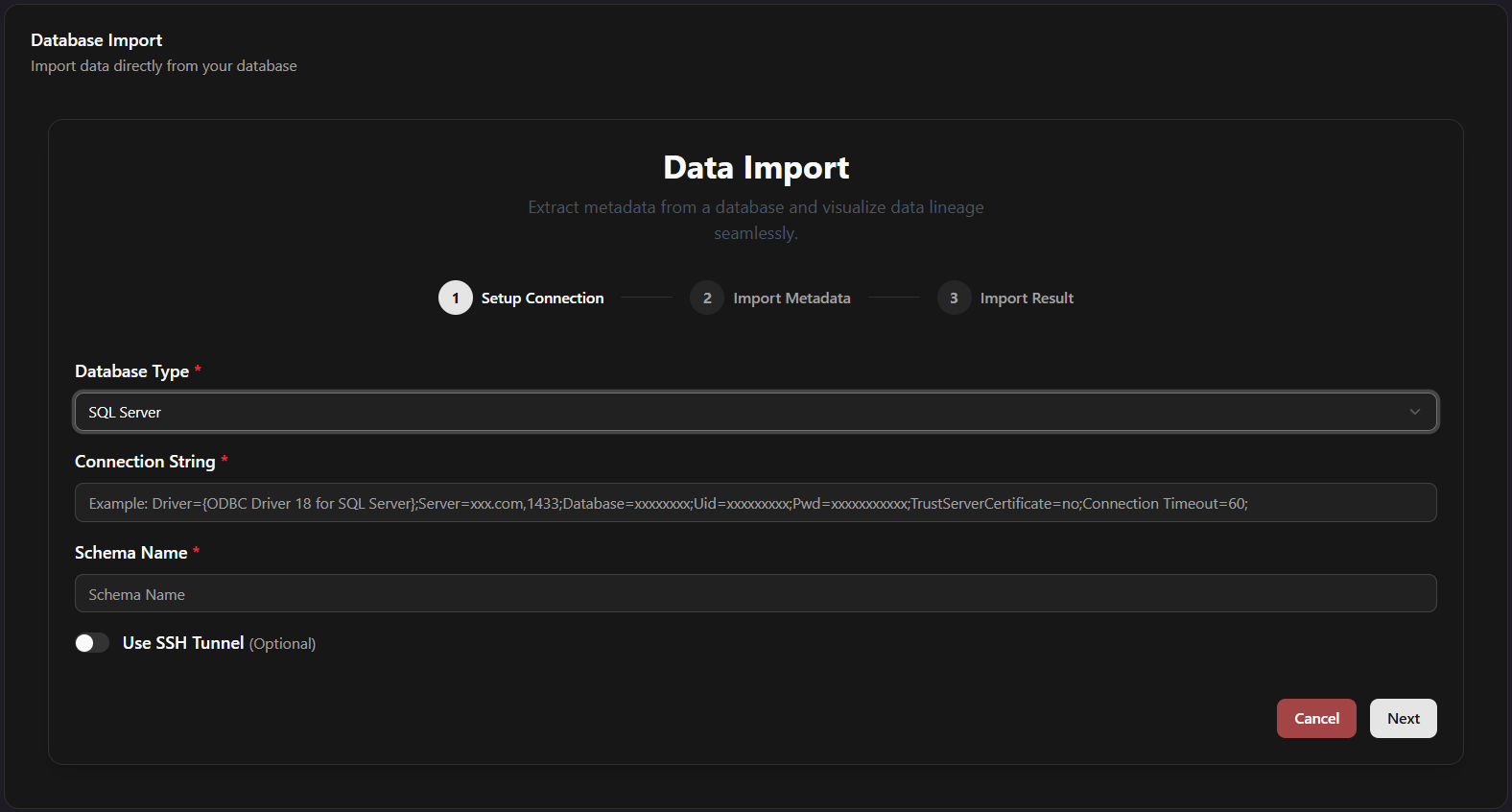

SQL Server

Parameters to Enter:

• DB Type: Select SQL Server as the database type.
• Connection String (Required): Enter the ODBC connection string of your SQL Server Database.
• Schema Name (Required): Specify the schema name to be imported from SQL Server Database.

Example Connection String

Driver={ODBC Driver 18 for SQL Server};Server=tcp:sqlserver.mycompany.com,1433;Database=SalesDB;Uid=admin_user;Pwd=xxx;Encrypt=yes;TrustServerCertificate=no;Connection Timeout=60;

Replace the Server address, Database name, Uid (username), and Pwd (password) with your actual database details.

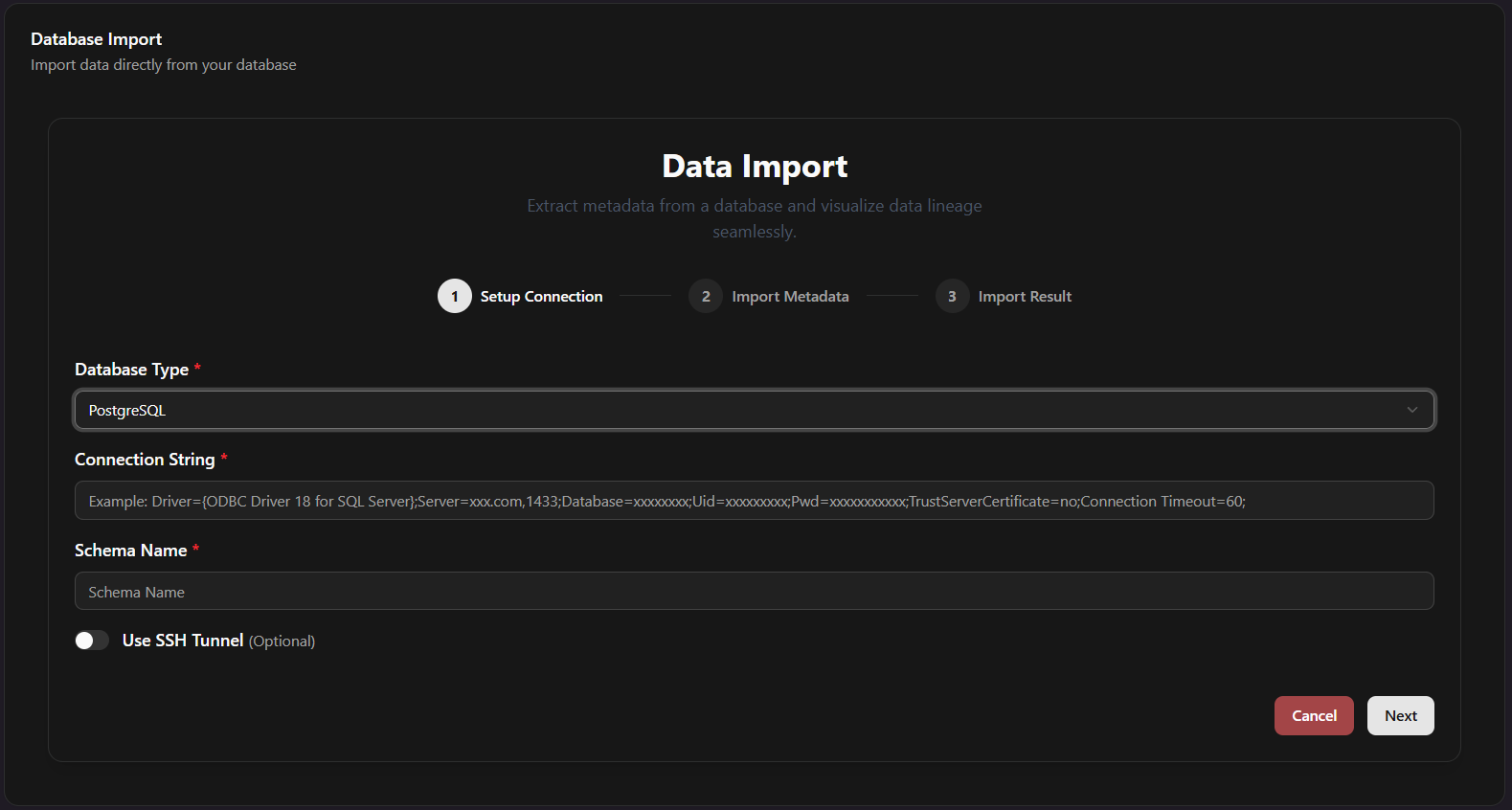

PostgreSQL

Parameters to Enter:

• DB Type: Select PostgreSQL as the database type.
• Connection String (Required): Enter the PostGreSQL connection string of your database.
• Schema Name (Required): Specify the schema name to be imported from PostGreSQL Database.

Example Connection String

DRIVER=PostgreSQL Unicode;SERVER=postgres.mycompany.com;DATABASE=analytics_db;UID=postgres_admin;PWD=xxx;sslmode=require;

Replace the Server address, Database name, Uid (username), and Pwd (password) with your actual database details.

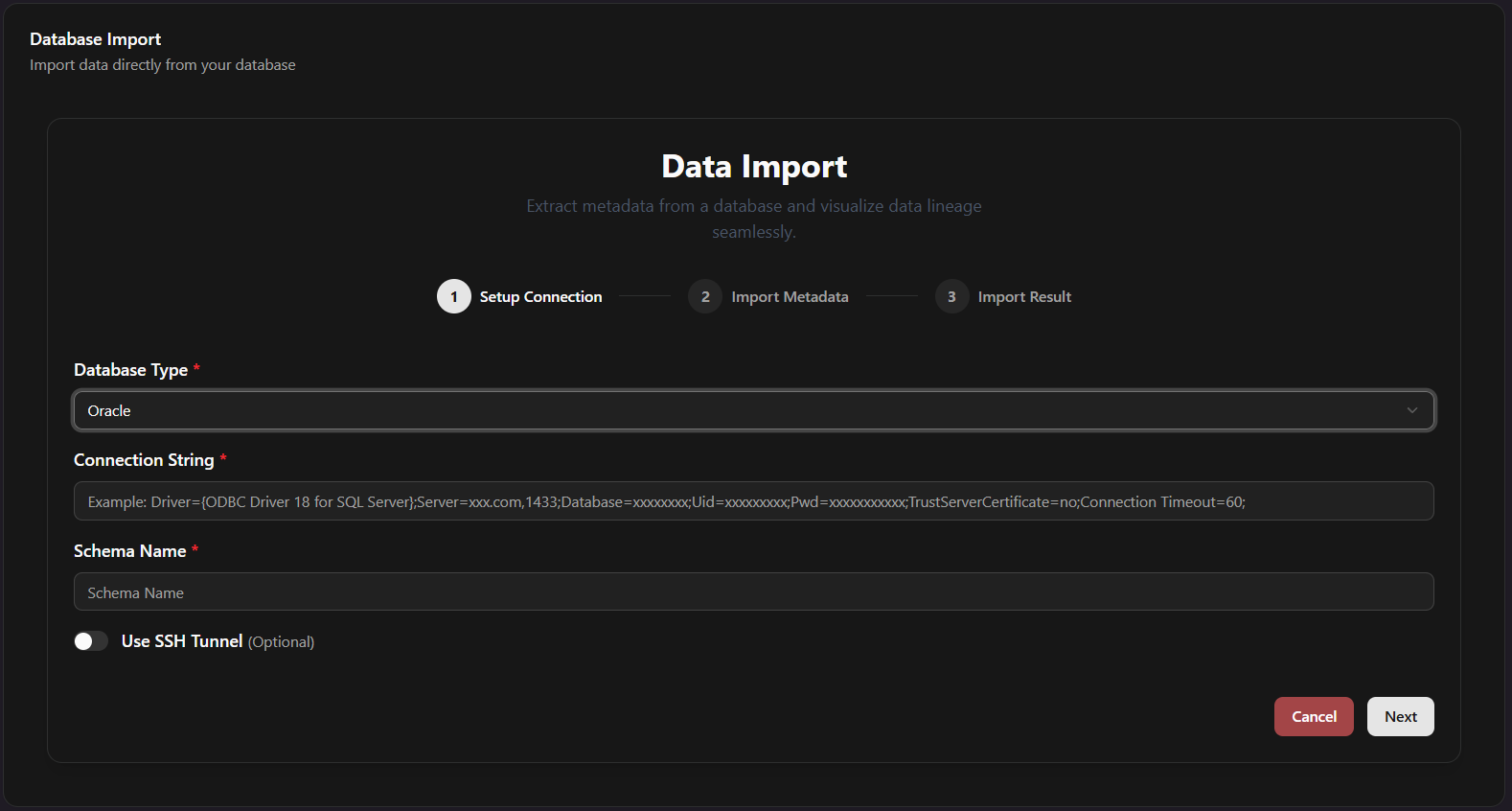

Oracle

Parameters to Enter:

• DB Type: Select Oracle as the database type.
• Connection String (Required): Enter the Oracle connection string of your database.
• Schema Name (Required): Specify the schema name to be imported from Oracle Database.

Example Connection String

DRIVER={Oracle Driver};DBQ=oracle.mycompany.com/ORCL;UID=sysadmin;PWD=xxx;

Replace the DBQ (host/service), UID (username), and PWD (password) with your Oracle database details.

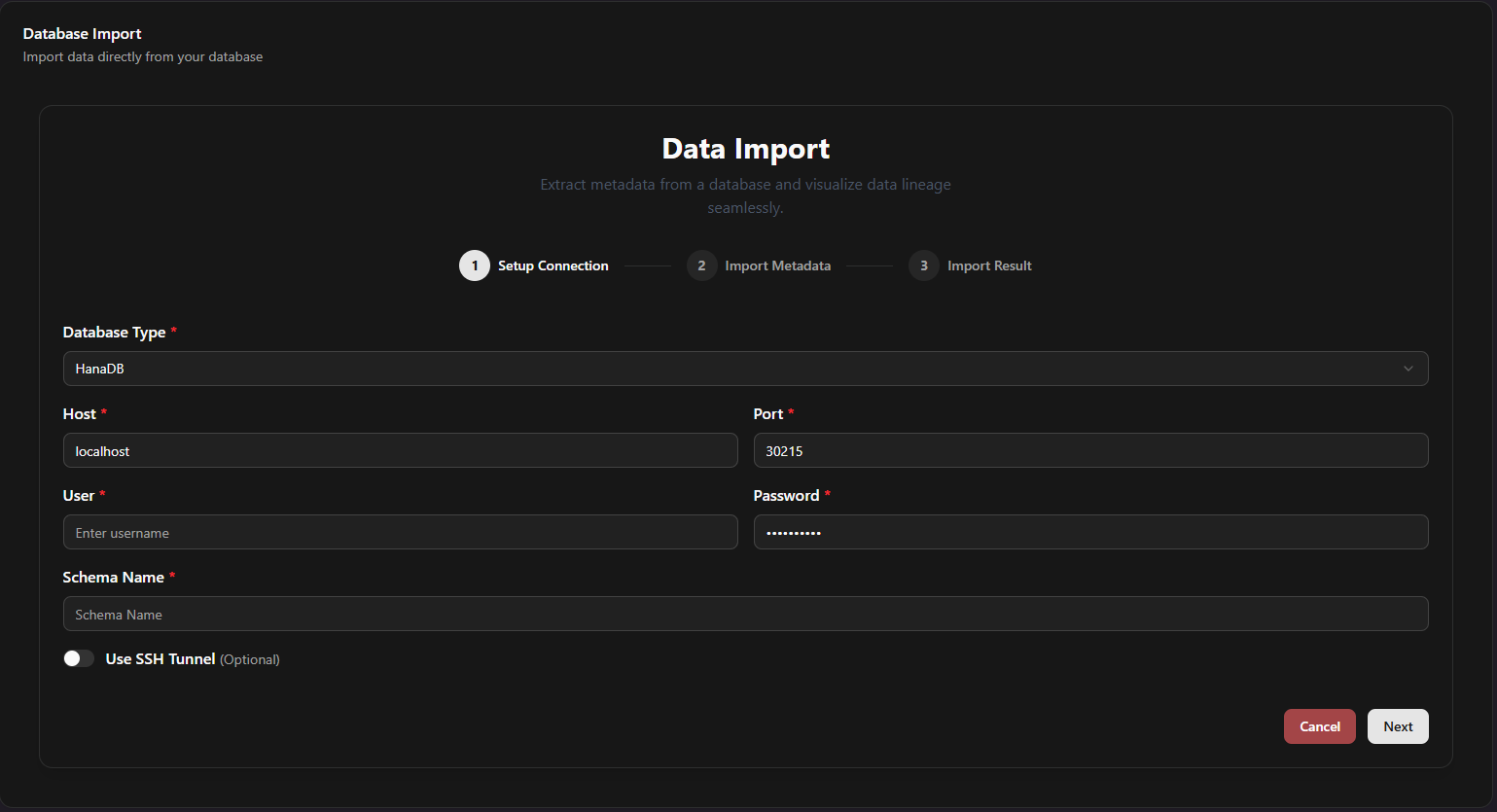

SAP HANA (HanaDB)

Parameters to Enter:

• DB Type: Select HanaDB as the database type.
• Host (Required): Enter the hostname or IP address of your SAP HANA Database server.
• Port (Required): Enter the port number (1-65535, e.g., 30015 or 30215).
• User & Password (Required): Enter your database credentials.
• Schema Name (Required): Specify the schema name to be imported from your SAP HANA database.

Example Configuration

• Host: hana.mycompany.com
• Port: 30015
• User: SYSTEM
• Password: xxx
• Schema Name: SALES_DATA

HANA Instance Port Configuration

SAP HANA default port depends on your instance number (NN):

• Tenant database (MDC): 3NN15 (e.g., 30015 for instance 00)
• System database: 3NN13
• Single Container: 30015

---

2. (Optional) Use an SSH Tunnel

If your database is inside a private network or behind a firewall, toggle on "Use SSH Tunnel" to configure an encrypted bridge:

• Local Port (Required): Port on your local machine the tunnel listens on (1–65535).
• Remote Host (Required): Internal address of the database server.
• Remote Port (Required): Database internal port (1–65535).
• SSH Host (Required): The server address you connect through (e.g. ssh.mycompany.com).

---

3. Click "Next" — Connection Is Tested

Click "Next". Anansi validates the fields, verifies that port numbers are within valid ranges, and tests the live connection.

• Success: A green "Connection Established" toast appears, and you advance to Step 2.
• Failure: A red error toast appears detailing what failed.
